Description

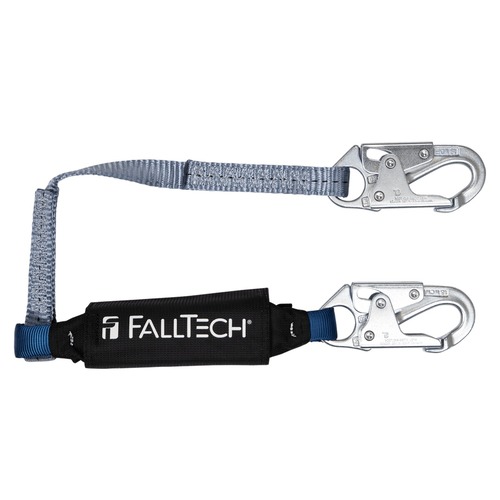

Falltech 3ft ViewPack Energy-Absorbing Lanyard

  • Heavy-duty 1″ polyester web construction throughout
  • 3′ length is ideally suited for applications where restricted fall clearances are present.
  • Energy absorber features patented ViewPack cover with inspection window
  • ViewPack cover also features WrapPack label protection
  • Includes alloy steel snap hooks for harness attachment and anchorage connection
  • Complies with ANSI Z359.13

MATERIAL SPECIFICATIONS for 3ft ViewPack Energy-Absorbing Lanyard

  • Webbing: Polyester; 5,000 lb min. static strength
  • Energy Absorber: Polyester tear-away
  • Connectors: Plated alloy steel; 5,000 lb min. static strength with 3,600 lb gate strength

PERFORMANCE SPECIFICATIONS

  • Static Strength: 5,000 lb min.
  • ANSI Lanyard Class: 6′ free fall
  • Arrest Distance: 48″
  • Arrest Force: 900 lb
  • Arrest Force: 1,800 lb
  • ANSI User Capacity: 130 to 310 lb max.
  • OSHA User Capacity: 130 to 310 lb max.
